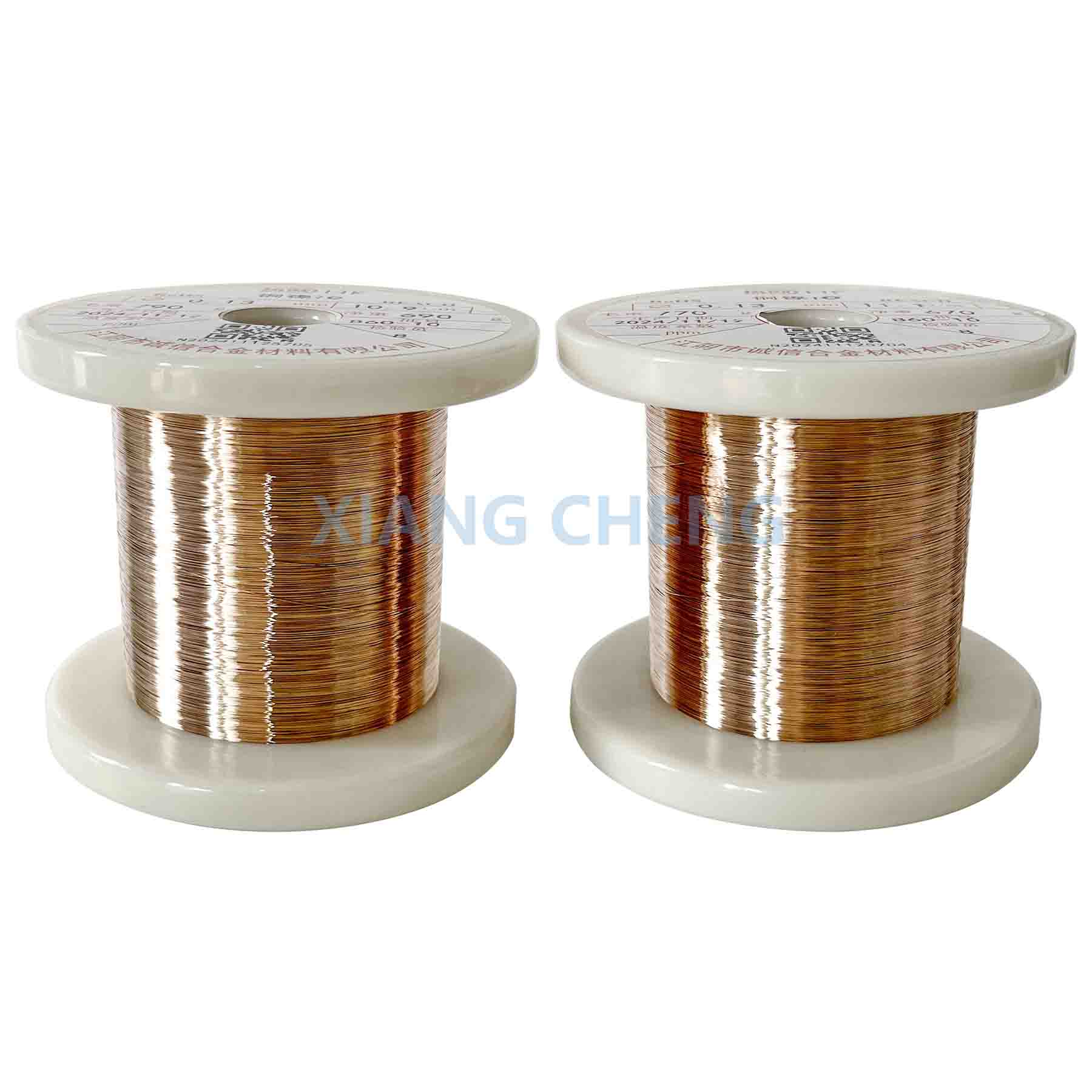

CuNi10 NC015 2.0811 C70700 Copper Nickel Alloy Wire For Heat Exchangers And Electrical Systems

Ask Lasest Price
Brand Name :	Senphus
Model Number :	CuNi10/NC015/2.0811/C70700
Certification :	ISO9001
Payment Terms :	T/T, D/P
Supply Ability :	30 Tons per day
Delivery Time :	3 days

Add to Cart

Product Details
Company Profile

CuNi10 NC015 2.0811 C70700 Copper Nickel Alloy Wire For Heat Exchangers And Electrical Systems

CuNi10 NC015 2.0811 C70700 Copper-Nickel Alloy Wire The Ideal Choice For Heat Exchangers And Electrical Systems

CuNi10 NC015 2.0811 C70700 Copper-Nickel Alloy Wire is a copper-nickel alloy containing approximately 10% nickel and 90% copper. This alloy is renowned for its enhanced corrosion resistance, particularly in seawater and other aggressive environments, while offering moderate strength, good electrical and thermal conductivity, and excellent formability. CuNi10 is a versatile material widely used in marine, chemical processing, and electrical industries, as it provides a solid balance of mechanical properties and corrosion resistance.

JIS

ASTM

ISO

DIN/EN

GOST

JB /T 6454-2008

CuNi10

NC015

JIS C2532-1999

C7071

C70700

90Cu-10Ni

C70700

CuNi10

C70700

DIN 17471-1983

CuNi10

C70700

2.0811

MH10

707B

C70700

Main physical properties:

Max continuous operating temperature ℃	250
Resistance temperature coefficient x 10^-5/℃(20℃-600℃)	<50
Thermovoltage to copper at 20℃ in μV/K	-25
Thermal expansion coefficient ×10^-6/K(20℃-400℃)	17.5
Thermal conductance at 20℃ W/mK	59
Specific heat capacity at 20℃ J/gK	0.38

Key Features of CuNi10 NC015 2.0811 C70700 Copper-Nickel Alloy Wire:

Composition:

Copper (Cu): Approximately 90%, offering excellent thermal conductivity, electrical conductivity, and ductility.

Nickel (Ni): Approximately 10%, enhancing corrosion resistance and providing increased strength compared to lower-nickel copper alloys.

Iron (Fe) and Manganese (Mn): Minor elements that further enhance the alloy’s strength and resistance to corrosion.

Corrosion Resistance:

Marine and Seawater Resistance: The 10% nickel content makes CuNi10 highly resistant to seawater corrosion, making it an ideal material for marine applications such as seawater cooling systems, piping, and heat exchangers exposed to aggressive marine environments.

General Corrosion Resistance: The alloy’s resistance to mild acids, alkaline solutions, and oxidizing environments makes it suitable for use in chemical processing, oil and gas industries, and industrial piping systems.

Biofouling Resistance: CuNi10 resists the accumulation of marine organisms (biofouling), a key advantage in heat exchangers and other components exposed to water and marine life.

Mechanical Properties:

Moderate Strength: CuNi10 offers higher strength than pure copper, making it suitable for applications that require moderate strength while maintaining ductility and formability.

Fatigue Resistance: The alloy performs well under conditions of thermal cycling and mechanical vibration, making it durable in dynamic environments such as those found in marine or industrial systems.

Workability: CuNi10 is easy to process into wires, tubes, rods, and sheets. It can be cold-worked or hot-worked with relative ease, enabling it to be fabricated into different forms for various applications.

Electrical and Thermal Conductivity:

Electrical Conductivity: While CuNi10’s electrical conductivity is lower than pure copper, it still provides adequate electrical performance for applications such as wires, electrical cables, and connectors.

Thermal Conductivity: The alloy offers good thermal conductivity, making it ideal for use in heat exchangers, cooling systems, and thermal management systems.

Weldability and Fabrication:

Weldability: CuNi10 can be welded using standard methods such as TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas), though care must be taken to manage heat input to avoid oxidation.

Formability: CuNi10 is easily worked into a variety of shapes, making it a versatile material for manufacturing products such as wires, tubes, and plates.

Applications:

Marine Applications: CuNi10 is ideal for seawater piping, heat exchangers, desalination plants, and other marine hardware exposed to saltwater, where corrosion resistance and biofouling resistance are critical.
Chemical Processing: The alloy’s resistance to mild acids and alkaline solutions makes it suitable for chemical processing equipment, industrial piping, and valves.
Heat Exchangers and Cooling Systems: CuNi10 is often used in cooling systems, heat exchangers, condensers, and thermal management devices where efficient heat transfer and corrosion resistance are required.
Electrical Components: The alloy is used for wires, connectors, and electrical cables in environments where moderate electrical conductivity and corrosion resistance are necessary.

Type		CuNi10NC015
Composition(%)	Cu	Rest
	Mn	/
	Ni	10
Max.continuous operating temperature(℃)		250
Resistivity at 20℃(μ m)		0.15 ±10%
Resisitance-temperature coefficient 20-600℃ (×10-5/℃)		＜ 50
Thermovoltage to copper at 20℃ in (μV/K)		-25
Mean coefficient of linear thermal expansion, in (10^-6/K) , at a temperature between 20 ℃ and 400 ℃		17.5
Thermal conductance at 20℃ (W/mK)		59
Specific heat capacity at 20℃ in (20℃ J/gK)		0.38
Density at 20 ℃(g/cm3)		8.9
Melting temperature in (℃)		1100
Min.tensile strength in (N/mm²⁾		290
Elongation(%)		25

Technical data table

Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
0.10	3.82	6.36	8.91	12.73	15.28	19.09	25.46	31.83	38.19	44.56	50.93	62.39
0.11	3.16	5.26	7.37	10.52	12.63	15.78	21.04	26.30	31.56	36.82	42.09	51.56
0.12	2.65	4.42	6.19	8.84	10.61	13.26	17.68	22.10	26.52	30.94	35.37	43.33
0.13	2.26	3.76	5.27	7.53	9.04	11.30	15.07	18.83	22.60	26.36	30.14	36.92
0.14	1.95	3.24	4.55	6.49	7.80	9.74	12.99	16.24	19.48	22.73	25.98	31.83
0.15	1.70	2.82	3.96	5.65	6.79	8.48	11.31	14.14	16.97	19.80	22.64	27.73
0.16	1.49	2.48	3.48	4.97	5.97	7.46	9.95	12.43	14.92	17.40	19.89	24.37
0.17	1.32	2.20	3.08	4.40	5.29	6.60	8.81	11.01	13.21	15.41	17.62	21.59
0.18	1.18	1.96	2.75	3.92	4.72	5.89	7.86	9.82	11.78	13.75	15.72	19.26
0.19	1.06	1.76	2.47	3.52	4.23	5.29	7.05	8.81	10.58	12.34	14.11	17.28
0.20	0.95	1.59	2.23	3.18	3.82	4.77	6.36	7.95	9.54	11.14	12.73	15.60
0.21	0.87	1.44	2.02	2.88	3.46	4.33	5.77	7.21	8.66	10.10	11.55	14.15
0.22	0.79	1.31	1.84	2.63	3.16	3.94	5.26	6.57	7.89	9.20	10.52	12.89
0.23	0.72	1.20	1.68	2.40	2.89	3.61	4.81	6.01	7.22	8.42	9.63	11.79
0.24	0.66	1.10	1.55	2.21	2.65	3.31	4.42	5.52	6.63	7.73	8.84	10.83
0.25	0.61	1.01	1.43	2.03	2.44	3.05	4.07	5.09	6.11	7.13	8.15	9.98
0.26	0.57	0.94	1.32	1.88	2.26	2.82	3.77	4.70	5.65	6.59	7.53	9.23
0.27	0.52	0.87	1.22	1.74	2.10	2.61	3.49	4.36	5.23	6.11	6.99	8.56
0.28	0.49	0.81	1.14	1.62	1.95	2.43	3.25	4.06	4.87	5.68	6.50	7.96
0.29	0.45	0.75	1.06	1.51	1.82	2.27	3.03	3.78	4.54	5.29	6.06	7.42
0.30	0.42	0.70	0.99	1.41	1.70	2.12	2.83	3.53	4.24	4.95	5.66	6.93
0.31	0.40	0.66	0.93	1.32	1.59	1.98	2.65	3.31	3.97	4.63	5.30	6.49
0.32	0.37	0.62	0.87	1.24	1.49	1.86	2.49	3.11	3.73	4.35	4.97	6.09
0.33	0.35	0.58	0.82	1.17	1.40	1.75	2.34	2.92	3.51	4.09	4.68	5.73
0.34	0.33	0.55	0.77	1.10	1.32	1.65	2.20	2.75	3.30	3.85	4.41	5.40
0.35	0.31	0.51	0.73	1.03	1.25	1.55	2.08	2.60	3.11	3.63	4.16	5.09
0.36	0.29	0.49	0.69	0.98	1.18	1.47	1.96	2.46	2.94	3.43	3.93	4.81
0.37	0.28	0.46	0.65	0.93	1.12	1.39	1.86	2.33	2.79	3.25	3.72	4.56
0.38	0.26	0.44	0.62	0.88	1.06	1.32	1.76	2.20	2.64	3.08	3.53	4.32
0.40	0.24	0.39	0.56	0.79	0.95	1.19	1.59	1.99	2.38	2.78	3.18	3.90
0.41	0.23	0.37	0.53	0.76	0.91	1.13	1.51	1.89	2.27	2.65	3.03	3.71
0.42	0.22	0.36	0.51	0.72	0.87	1.08	1.44	1.80	2.16	2.52	2.89	3.54
0.43	0.21	0.34	0.48	0.69	0.83	1.03	1.38	1.72	2.06	2.41	2.75	3.37
0.44	0.20	0.32	0.46	0.66	0.79	0.98	1.31	1.64	1.97	2.30	2.63	3.22
0.45	0.19	0.31	0.44	0.63	0.75	0.94	1.26	1.57	1.88	2.20	2.52	3.08
0.46	0.18	0.30	0.42	0.60	0.72	0.90	1.20	1.50	1.80	2.10	2.41	2.95
0.47	0.17	0.28	0.40	0.58	0.69	0.86	1.15	1.44	1.72	2.01	2.31	2.82
0.48	0.17	0.27	0.39	0.55	0.66	0.82	1.10	1.38	1.65	1.93	2.21	2.71
0.49	0.16	0.26	0.37	0.53	0.64	0.79	1.06	1.33	1.59	1.85	2.12	2.60
0.50	0.15	0.25	0.36	0.51	0.61	0.76	1.01	1.27	1.52	1.78	2.04	2.50
0.51	0.15	0.24	0.34	0.49	0.59	0.73	0.98	1.22	1.46	1.71	1.96	2.40
0.52	0.14	0.23	0.33	0.47	0.57	0.70	0.94	1.18	1.41	1.65	1.88	2.31
0.53	0.14	0.22	0.32	0.45	0.54	0.67	0.91	1.13	1.35	1.59	1.81	2.22
0.54	0.13	0.22	0.31	0.44	0.52	0.65	0.87	1.09	1.30	1.53	1.75	2.14
0.55	0.13	0.21	0.29	0.42	0.51	0.63	0.84	1.05	1.26	1.47	1.68	2.06
0.56	0.12	0.20	0.28	0.41	0.49	0.60	0.81	1.02	1.21	1.42	1.62	1.99
0.57	0.12	0.19	0.27	0.39	0.47	0.58	0.78	0.98	1.17	1.37	1.57	1.92
0.58	0.11	0.19	0.27	0.38	0.45	0.56	0.76	0.95	1.13	1.32	1.51	1.85
0.59	0.11	0.18	0.26	0.37	0.44	0.54	0.73	0.91	1.09	1.28	1.46	1.79
0.60	0.11	0.18	0.25	0.35	0.42	0.53	0.71	0.88	1.06	1.24	1.41	1.73

Tolerance of ohm/m: ±5%
Round wire: range from 0.04mm (0.0016″) to 12mm (0.4724″)
Ribbon: range from 0.05mm (0.002″) to 6mm (0.2362″), Max ratio width : thickness = 10:1
