CuNi Alloy CuNi30 NC035 Durable Copper Nickel Alloy For Chemical Environments

CuNi Alloy CuNi30 NC035 The Durable Copper-Nickel Alloy for Chemical Environments

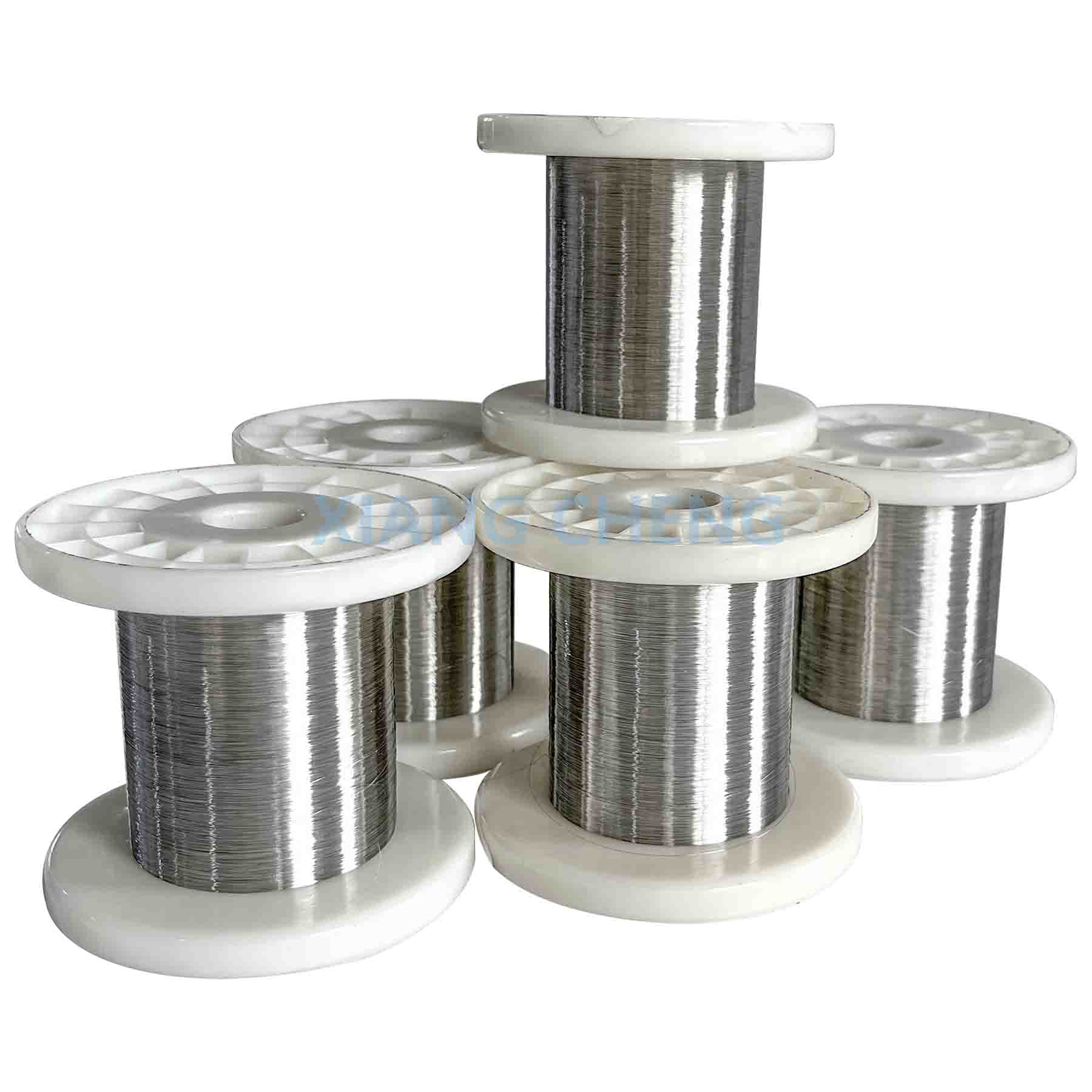

CuNi30 NC035 Wire is a copper-nickel alloy consisting of approximately 30% nickel and 70% copper, known for its excellent combination of corrosion resistance, mechanical strength, and thermal stability. This alloy is widely used in demanding environments such as marine applications, chemical processing, and high-temperature operations due to its robustness and reliability.

CuNi30 NC035 Wire is a highly durable copper-nickel alloy known for its exceptional corrosion resistance, mechanical strength, and thermal conductivity. It is particularly suited for harsh environments, including marine, chemical processing, and high-temperature applications. While more expensive than other copper-based alloys, its superior performance in corrosive and high-stress conditions makes it a valuable material for critical applications. Whether used in seawater systems, heat exchangers, or industrial piping, CuNi30 provides reliable, long-lasting performance, making it an ideal choice for demanding industries.

Chemical Composition Wt.%	%	Ni	Cu	Mn
	Min
	Max	30	Rest	1

Main physical properties:

Max continuous operating temperature ℃	350
Resistance temperature coefficient x 10^-5/℃(20℃-600℃)	<10
Thermovoltage to copper at 20℃ in μV/K	-37
Thermal expansion coefficient ×10^-6/K(20℃-400℃)	17.0
Thermal conductance at 20℃ W/mK	27
Specific heat capacity at 20℃ J/gK	0.39

Main technical data

Type		CuNi1 NC003	CuNi2 NC005	CuNi4 NC007	CuNi6 NC010	CuNi8 NC012	CuMn3 NC012	CuNi10 NC015	CuNi14 NC020	CuNi19 NC025	CuNi23 NC030	CuNi30 NC035	CuNi34 NC040	CuNi44 NC050
Composition(%)	Cu	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest
	Mn	/	/	/	/	/	3	/	0.3	0.5	0.5	1.0	1.0	1.0
	Ni	1	2	4	6	8		10	14.2	19	23	30	34	44
Max.continuous operating temperature(℃)		200	200·	200	220	250	200	250	300	300	300	350	350	400
Resistivity at 20℃(μ m)		0.03 ±10%	0.05 ±10%	0.07 ±10%	0.10 ±10%	0.12 ±10%	0.12 ±10%	0.15 ±10%	0.20 ±5%	0.25 ±5%	0.30 ±5%	0.35 ±5%	0.40 ±5%	0.49 ±5%
Resisitance-temperature coefficient 20-600℃ (×10-5/℃)		＜ 100	＜ 120	＜ 50	＜ 60	＜ 57	＜ 38	＜ 50	＜ 38	＜ 25	＜ 16	＜ 10	＜ -0	＜ -6
Thermovoltage to copper at 20℃ in (μV/K)		-8	-12	-12	-18	-22	1	-25	-28	-32	-34	-37	-39	-43
Mean coefficient of linear thermal expansion, in (10^-6/K) , at a temperature between 20 ℃ and 400 ℃		17.5	17.5	17.5	17.5	17.5	18	17.5	17.5	17.5	17.5	17.0	16.0	15.0
Thermal conductance at 20℃ (W/mK)		145	130	130	92	75	84	59	48	38	33	27	25	23
Specific heat capacity at 20℃ in (20℃ J/gK)		0.38	0.38	0.38	0.38	0.38	0.39	0.38	0.38	0.38	0.38	0.39	0.40	0.41
Density at 20 ℃(g/cm3)		8.9	8.9	8.9	8.9	8.9	8.8	8.9	8.9	8.9	8.9	8.9	8.9	8.9
Melting temperature in (℃)		1085	1090	1090	1095	1097	1050	1100	1115	1135	1150	1170	1180	1280
Min.tensile strength in (N/mm²⁾		210	220	220	250	270	290	290	310	340	350	400	400	420
Elongation(%)		25	25	25	25	25	25	25	25	25	25	25	25	25

Technical data table

Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
0.10	3.82	6.36	8.91	12.73	15.28	19.09	25.46	31.83	38.19	44.56	50.93	62.39
0.11	3.16	5.26	7.37	10.52	12.63	15.78	21.04	26.30	31.56	36.82	42.09	51.56
0.12	2.65	4.42	6.19	8.84	10.61	13.26	17.68	22.10	26.52	30.94	35.37	43.33
0.13	2.26	3.76	5.27	7.53	9.04	11.30	15.07	18.83	22.60	26.36	30.14	36.92
0.14	1.95	3.24	4.55	6.49	7.80	9.74	12.99	16.24	19.48	22.73	25.98	31.83
0.15	1.70	2.82	3.96	5.65	6.79	8.48	11.31	14.14	16.97	19.80	22.64	27.73
0.16	1.49	2.48	3.48	4.97	5.97	7.46	9.95	12.43	14.92	17.40	19.89	24.37
0.17	1.32	2.20	3.08	4.40	5.29	6.60	8.81	11.01	13.21	15.41	17.62	21.59
0.18	1.18	1.96	2.75	3.92	4.72	5.89	7.86	9.82	11.78	13.75	15.72	19.26
0.19	1.06	1.76	2.47	3.52	4.23	5.29	7.05	8.81	10.58	12.34	14.11	17.28
0.20	0.95	1.59	2.23	3.18	3.82	4.77	6.36	7.95	9.54	11.14	12.73	15.60
0.21	0.87	1.44	2.02	2.88	3.46	4.33	5.77	7.21	8.66	10.10	11.55	14.15
0.22	0.79	1.31	1.84	2.63	3.16	3.94	5.26	6.57	7.89	9.20	10.52	12.89
0.23	0.72	1.20	1.68	2.40	2.89	3.61	4.81	6.01	7.22	8.42	9.63	11.79
0.24	0.66	1.10	1.55	2.21	2.65	3.31	4.42	5.52	6.63	7.73	8.84	10.83
0.25	0.61	1.01	1.43	2.03	2.44	3.05	4.07	5.09	6.11	7.13	8.15	9.98
0.26	0.57	0.94	1.32	1.88	2.26	2.82	3.77	4.70	5.65	6.59	7.53	9.23
0.27	0.52	0.87	1.22	1.74	2.10	2.61	3.49	4.36	5.23	6.11	6.99	8.56
0.28	0.49	0.81	1.14	1.62	1.95	2.43	3.25	4.06	4.87	5.68	6.50	7.96
0.29	0.45	0.75	1.06	1.51	1.82	2.27	3.03	3.78	4.54	5.29	6.06	7.42
0.30	0.42	0.70	0.99	1.41	1.70	2.12	2.83	3.53	4.24	4.95	5.66	6.93
0.31	0.40	0.66	0.93	1.32	1.59	1.98	2.65	3.31	3.97	4.63	5.30	6.49
0.32	0.37	0.62	0.87	1.24	1.49	1.86	2.49	3.11	3.73	4.35	4.97	6.09
0.33	0.35	0.58	0.82	1.17	1.40	1.75	2.34	2.92	3.51	4.09	4.68	5.73
0.34	0.33	0.55	0.77	1.10	1.32	1.65	2.20	2.75	3.30	3.85	4.41	5.40
0.35	0.31	0.51	0.73	1.03	1.25	1.55	2.08	2.60	3.11	3.63	4.16	5.09
0.36	0.29	0.49	0.69	0.98	1.18	1.47	1.96	2.46	2.94	3.43	3.93	4.81
0.37	0.28	0.46	0.65	0.93	1.12	1.39	1.86	2.33	2.79	3.25	3.72	4.56
0.38	0.26	0.44	0.62	0.88	1.06	1.32	1.76	2.20	2.64	3.08	3.53	4.32
0.40	0.24	0.39	0.56	0.79	0.95	1.19	1.59	1.99	2.38	2.78	3.18	3.90
0.41	0.23	0.37	0.53	0.76	0.91	1.13	1.51	1.89	2.27	2.65	3.03	3.71
0.42	0.22	0.36	0.51	0.72	0.87	1.08	1.44	1.80	2.16	2.52	2.89	3.54
0.43	0.21	0.34	0.48	0.69	0.83	1.03	1.38	1.72	2.06	2.41	2.75	3.37
0.44	0.20	0.32	0.46	0.66	0.79	0.98	1.31	1.64	1.97	2.30	2.63	3.22
0.45	0.19	0.31	0.44	0.63	0.75	0.94	1.26	1.57	1.88	2.20	2.52	3.08
0.46	0.18	0.30	0.42	0.60	0.72	0.90	1.20	1.50	1.80	2.10	2.41	2.95
0.47	0.17	0.28	0.40	0.58	0.69	0.86	1.15	1.44	1.72	2.01	2.31	2.82
0.48	0.17	0.27	0.39	0.55	0.66	0.82	1.10	1.38	1.65	1.93	2.21	2.71
0.49	0.16	0.26	0.37	0.53	0.64	0.79	1.06	1.33	1.59	1.85	2.12	2.60
0.50	0.15	0.25	0.36	0.51	0.61	0.76	1.01	1.27	1.52	1.78	2.04	2.50
0.51	0.15	0.24	0.34	0.49	0.59	0.73	0.98	1.22	1.46	1.71	1.96	2.40
0.52	0.14	0.23	0.33	0.47	0.57	0.70	0.94	1.18	1.41	1.65	1.88	2.31
0.53	0.14	0.22	0.32	0.45	0.54	0.67	0.91	1.13	1.35	1.59	1.81	2.22
0.54	0.13	0.22	0.31	0.44	0.52	0.65	0.87	1.09	1.30	1.53	1.75	2.14
0.55	0.13	0.21	0.29	0.42	0.51	0.63	0.84	1.05	1.26	1.47	1.68	2.06
0.56	0.12	0.20	0.28	0.41	0.49	0.60	0.81	1.02	1.21	1.42	1.62	1.99
0.57	0.12	0.19	0.27	0.39	0.47	0.58	0.78	0.98	1.17	1.37	1.57	1.92
0.58	0.11	0.19	0.27	0.38	0.45	0.56	0.76	0.95	1.13	1.32	1.51	1.85
0.59	0.11	0.18	0.26	0.37	0.44	0.54	0.73	0.91	1.09	1.28	1.46	1.79
0.60	0.11	0.18	0.25	0.35	0.42	0.53	0.71	0.88	1.06	1.24	1.41	1.73

Tolerance of ohm/m: ±5%
Round wire: range from 0.04mm (0.0016″) to 12mm (0.4724″)
Ribbon: range from 0.05mm (0.002″) to 6mm (0.2362″), Max ratio width : thickness = 10:1

Key Features of CuNi30 NC035 Wire:

Composition:

Copper (Cu): Approximately 70%.

Nickel (Ni): Approximately 30%, contributing to enhanced corrosion resistance and mechanical properties.

Corrosion Resistance:

Exceptional Seawater Resistance: CuNi30 offers superior resistance to seawater corrosion, including protection against biofouling and stress corrosion cracking, making it ideal for marine and offshore applications.

Chemical Resistance: Performs well in environments exposed to acids, alkalis, and other industrial chemicals, particularly in neutral and mildly acidic conditions.

Oxidation Resistance: Maintains its properties in high-temperature oxidative environments.

Mechanical Properties:

High Strength and Toughness: Offers robust mechanical properties with good tensile strength and durability, ensuring reliable performance under stress.

Good Ductility: Easily formed into complex shapes or components without compromising its structural integrity.

Work Hardening Capability: Can be strengthened through cold working for additional mechanical performance.

Thermal and Electrical Conductivity:

Thermal Conductivity: Provides efficient heat transfer, making it suitable for heat exchangers and thermal applications.

Moderate Electrical Conductivity: While not as conductive as pure copper, CuNi30 delivers sufficient electrical performance for many applications requiring durability and conductivity.

Non-Magnetic Properties:

Completely non-magnetic, making it suitable for sensitive applications where magnetic interference must be minimized.

Weldability and Fabrication:

Excellent Weldability: Easy to weld using standard methods, ensuring a seamless connection for industrial or marine systems.

Machinability: Can be fabricated into wires, tubes, or sheets with precision, allowing for versatile applications in various industries.

High-Temperature Performance:

Retains strength and stability in high-temperature environments, operating reliably up to approximately 300°C (572°F).

Applications:

Marine and Offshore: Ideal for seawater piping, heat exchangers, condenser tubes, and shipbuilding due to its resistance to biofouling and corrosion.
Chemical Processing: Used in chemical plants, heat exchangers, and piping systems that handle corrosive chemicals.
Desalination Plants: Commonly employed in evaporators, condensers, and distillation equipment for saltwater applications.
Power Generation: Used in cooling systems and heat exchangers for thermal power plants.
Automotive Applications: Utilized in components such as braking systems and hydraulic lines where durability and corrosion resistance are critical.
Electrical and Electronics: Suitable for resistance wires, connectors, and terminals in environments requiring corrosion resistance.

Advantages of CuNi30 NC035 Wire:

Corrosion Resistance: Outstanding performance in seawater and chemically aggressive environments.
High Strength and Durability: Robust mechanical properties ensure long-lasting performance under mechanical stress and environmental exposure.
Thermal Stability: Performs well in applications requiring consistent thermal conductivity and stability under temperature fluctuations.
Non-Magnetic: Ideal for applications where magnetic interference is a concern.
Long-Term Reliability: Offers extended service life, reducing maintenance and replacement costs.

Limitations of CuNi30 NC035 Wire:

Cost: The higher nickel content makes CuNi30 more expensive than lower nickel alloys or pure copper.
Electrical Conductivity: While adequate, its electrical conductivity is lower than that of pure copper, which may limit its use in applications requiring maximum conductivity.
Limited Extreme High-Temperature Use: Although it performs well up to 300°C, other specialized alloys may be more suitable for temperatures exceeding this range.
