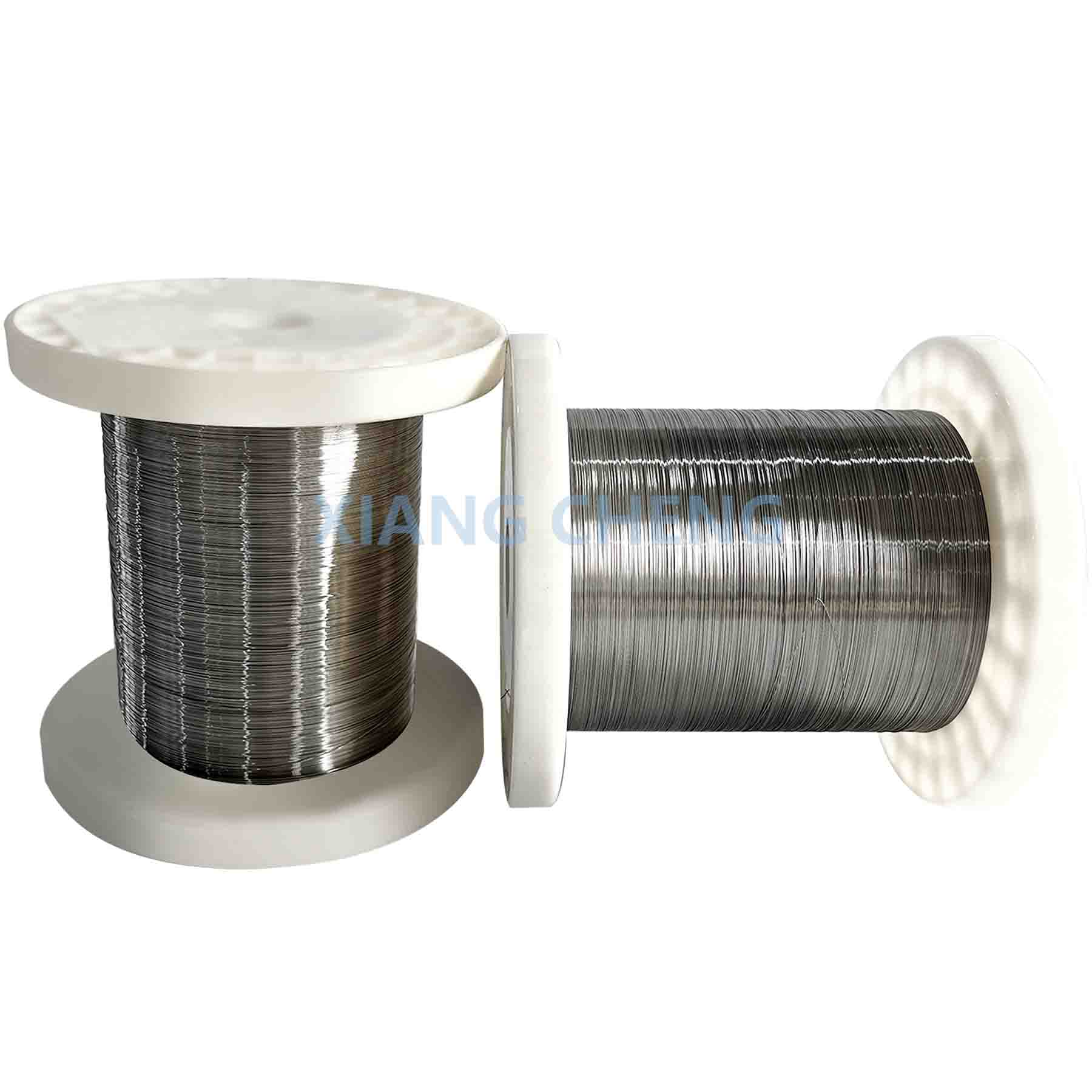

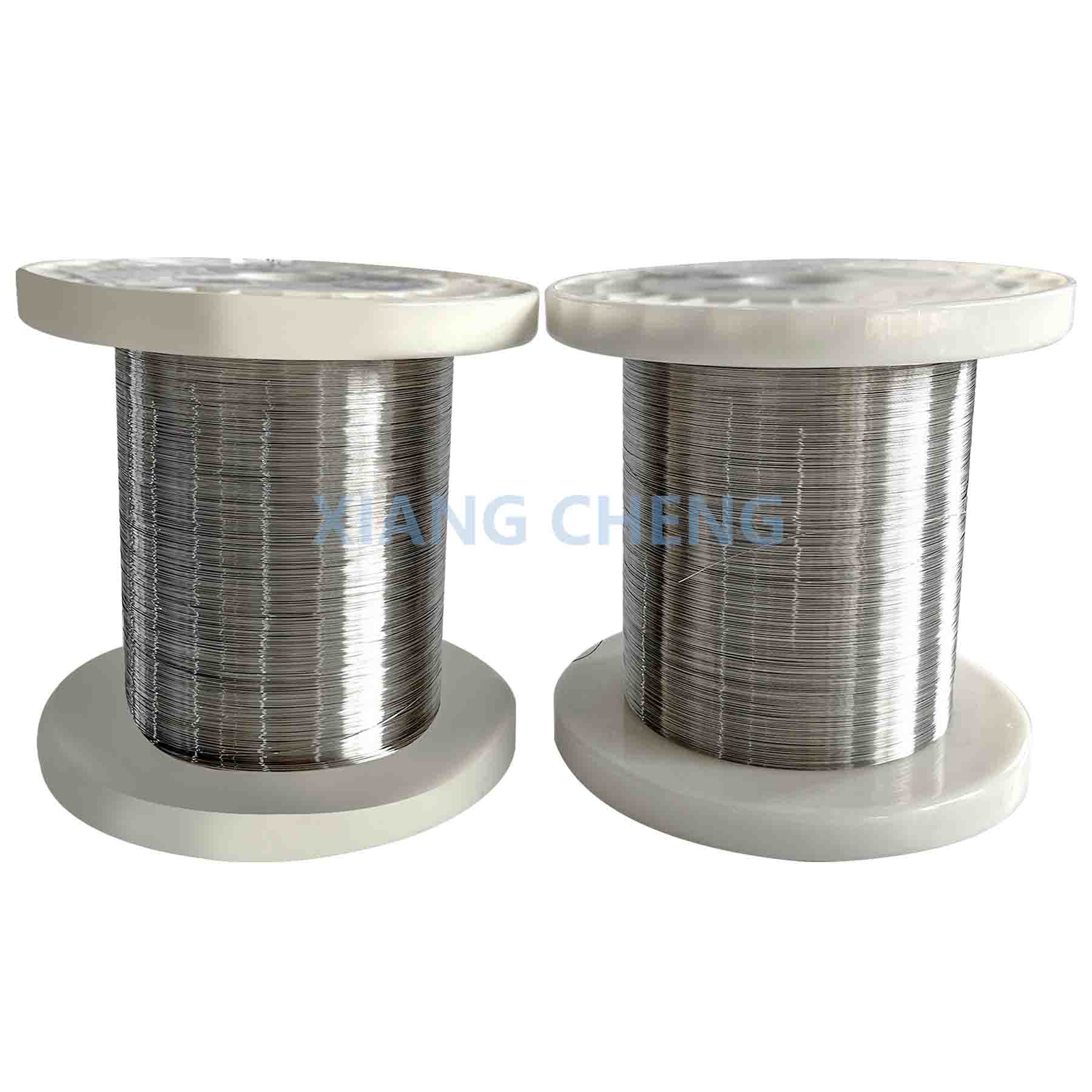

Fe-CuNi Type J Thermocouple Wire for Industrial Processes with Moderate Temperatures

Fe-CuNi Type J Thermocouple Wire is a widely used temperature sensing element made from a positive leg of pure iron (Fe) and a negative leg of Copper-Nickel alloy (CuNi), also known as Constantan. Type J thermocouples are particularly valued for their high sensitivity, affordability, and reliability, making them ideal for various industrial and scientific applications.

Fe-CuNi Type J Thermocouple Wire is an affordable and reliable temperature-sensing solution for moderate-temperature applications. Known for its high sensitivity and good performance in reducing or inert atmospheres, it is widely used in industrial heating, chemical processing, and general-purpose temperature monitoring. However, it has limitations in high-oxidizing conditions and at very high temperatures, where its performance may degrade due to the oxidation of the iron leg.

color codes of thermocouple ( J type )

Thermocouple temperature range and tolerance

Key Features of Fe-CuNi Type J Thermocouple Wire:

• Temperature Range

-210°C to 760°C (-346°F to 1400°F).

Ideal for low- to moderate-temperature measurements.

• High Sensitivity

Type J thermocouples are highly sensitive with a thermoelectric voltage of approximately 55 µV/°C at 0°C, making them suitable for precise temperature measurement.

• Material Composition

Positive Leg (Fe): Pure iron, offering good thermal conductivity but prone to oxidation at higher temperatures.

Negative Leg (CuNi/Constantan): A copper-nickel alloy, typically 55% copper and 45% nickel, which provides excellent stability and resistance to corrosion.

• Electrical Properties

High output and stable voltage within the temperature range, ensuring reliable and consistent readings.

• Corrosion Resistance

Iron Leg: Resistant to oxidation in reducing and vacuum environments but prone to rapid oxidation in high-oxygen or oxidizing conditions at higher temperatures.

Copper-Nickel Leg: More resistant to oxidation, though the alloy can degrade in extremely high-temperature oxidizing conditions.

• Cost-Effective

Type J thermocouples are generally less expensive than other thermocouple types, such as Type K, making them an economical choice for applications with moderate temperature ranges.

• Magnetic Properties

The iron leg of Type J is magnetic, which can be a consideration in some specific applications, such as when operating in magnetic fields or where non-magnetic materials are required.

Applications

• Industrial Heating: Widely used in furnaces, kilns, and ovens.
• Food Processing: Monitoring temperature in baking, cooking, and drying applications.
• Chemical Processing: Suitable for applications where temperatures do not exceed its limit in both reducing and inert environments.
• Oil & Gas: Used for temperature monitoring in reactors and pipelines.
• General Temperature Monitoring: In situations where high accuracy is required in moderate temperatures.

Cable Options

• Insulation Materials: Available in a variety of insulation options, including fiberglass, Teflon, and ceramic, for different environmental conditions.
• Shielded or Unshielded Cables: Shielded cables are often used to reduce electrical interference in noisy environments.

Advantages of Type J Thermocouple Wire:

• High Sensitivity: Excellent for precise temperature measurement due to its high voltage output.
• Affordable: Type J thermocouples are cost-effective, making them suitable for a wide range of applications.
• Reliable: Stable and accurate within its temperature range, suitable for most general-purpose applications.

Limitations:

• Oxidation Sensitivity: The pure iron leg is highly susceptible to oxidation at high temperatures and in oxygen-rich environments.
• Magnetic Properties: The iron leg’s magnetic nature may cause interference in some applications.
• Limited High-Temperature Range: Not suitable for temperatures above 760°C, making it less appropriate for extremely high-temperature applications compared to other types (e.g., Type K).
