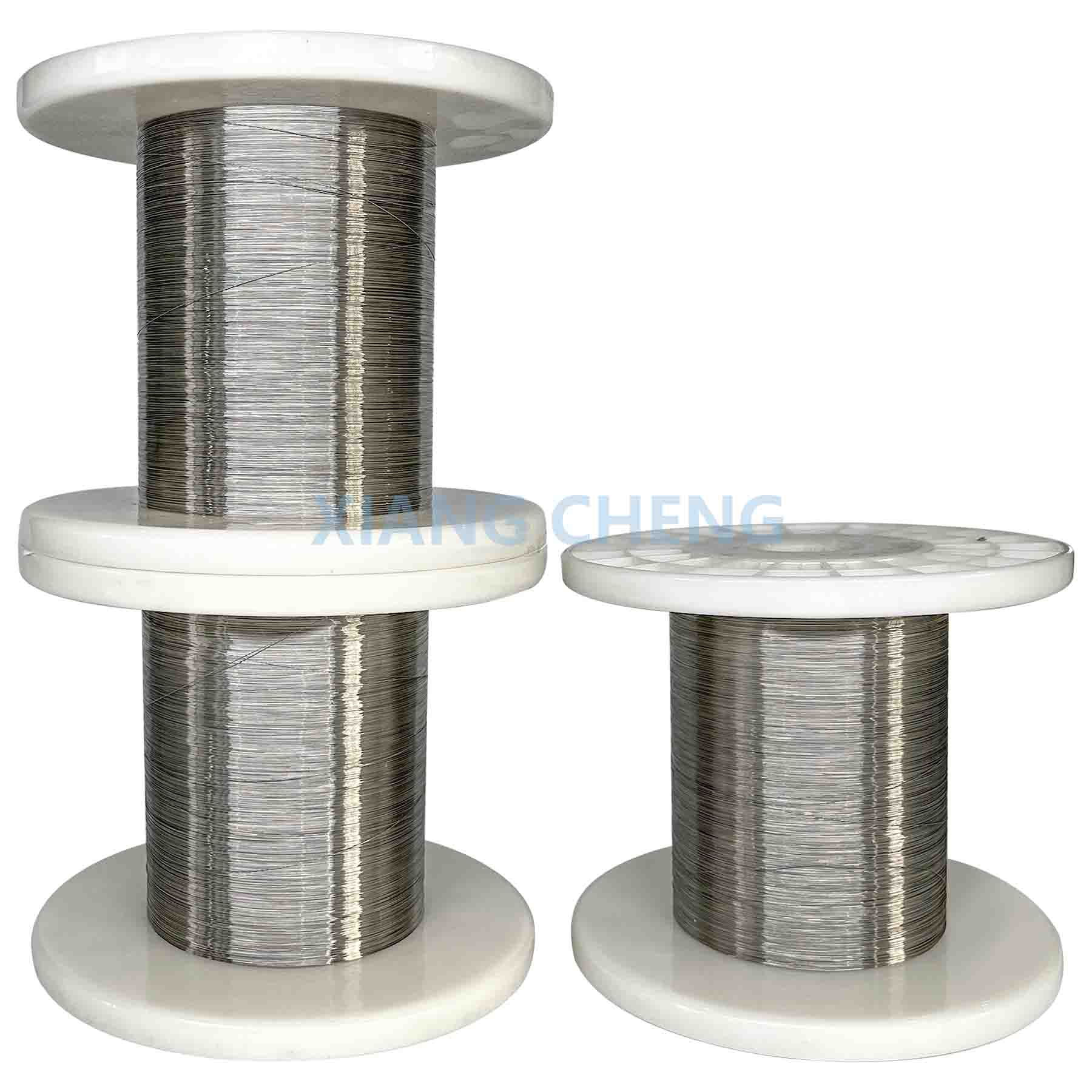

NiCr-CuNi Type E Thermocouple Wire Wide High Sensitivity for Precise Measurements in Various Industries

The NiCr-CuNi Type E thermocouple is a high-sensitivity temperature measurement device composed of a Nickel-Chromium (NiCr) positive leg and a Copper-Nickel (CuNi) negative leg. It operates in a wide temperature range from -200°C to +900°C (-328°F to +1652°F), making it especially suitable for cryogenic and low-temperature applications. With an electromotive force (EMF) output of approximately 68 µV/°C, it is the most sensitive of standard thermocouples.

Type E thermocouples are stable and reliable in oxidizing or inert atmospheres but are not recommended for reducing or sulfur-rich environments due to potential degradation. Their high sensitivity makes them ideal for precision measurements in industrial processes, laboratory setups, and cryogenic systems. Although less versatile than Type K thermocouples for high-temperature work, Type E is preferred for applications requiring accurate readings in low to medium temperature ranges.

Color codes of thermocouple ( E type )

Key Features of NiCr-CuNi (Type E) Constantan Thermocouple Wire Include:

1.Composition:

• Positive leg: Nickel Chromium (NiCr).
• Negative leg: Copper Nickel (CuNi).
• This combination allows it to measure temperatures effectively in various environments.

2. Temperature Range:

• The Type E thermocouple has a wide temperature range, typically from -200°C to 900°C (-328°F to 1652°F).
• It is ideal for high-precision measurements in applications requiring higher sensitivity.

3. Voltage Output:

• Type E thermocouples produce a small voltage (mV) that correlates with temperature.
• They have a relatively high Seebeck coefficient (sensitivity) compared to other thermocouple types, meaning they provide a stronger signal for a given temperature change.

4. Accuracy:

• Type E thermocouples offer high accuracy and excellent stability over time, particularly in the range of 0 to 600°C.
• Their sensitivity to small temperature changes makes them suitable for applications where precision is crucial.

Applications:

Type E thermocouples are widely used in industries where high-precision temperature monitoring is necessary, such as:

• Laboratories and scientific research.
• Aerospace and electronics manufacturing.
• Heat treatment and kiln operations.
• Cryogenic research, especially due to their ability to measure low temperatures.

Advantages:

• High Sensitivity: Type E thermocouples provide a strong and relatively linear voltage response to temperature changes.
• Wide Temperature Range: Suitable for both cryogenic and moderately high temperatures.
• Excellent Stability: This thermocouple type offers good long-term reliability.
• Corrosion Resistance: The materials used offer good resistance to oxidation and corrosion.

Limitations:

• While it has a good temperature range, Type E thermocouples may not be suitable for extremely high-temperature applications (above 900°C).
• The copper-nickel negative leg can be more susceptible to damage in certain harsh conditions compared to other thermocouple types.

Standards and Calibration:

• Type E thermocouples conform to various international standards, including the ASTM E230 and IEC 60584, ensuring consistent and reliable performance.

Company Overview:

Jiangyin Chengxin Alloy Material Co., Ltd has more than 20 years of experience as the lead.ing alloy wire manufacturer in China. We offer a wide range of services from fine wire drawing toresistance wire manufacturing. Since the beginning, our specialty has been the quality and preci.sion of our products. We have the tightest tolerances and deliver within a few days to a fewweeks. As a result, we have become the leading alloy wire supplier in the industry.

Senphus Subsidiaries:

• Jiangyin Chengxin Alloy Material Co., Ltd.
• Jiangyin Senphus Electrical Materials Co., Ltd.
• Jiangsu Xiangcheng Supply Chain Management Co., Ltd.

Jiangyin Chengxin Alloy Material Co., Ltd.: With nearly 20 years of experience, Jiangyin Chengxin is a leading alloy wire manufacturer in China. We offer a wide range of services, from fine wire drawing to resistance wire manufacturing. Our specialty lies in the quality and precision of our products, achieving the tightest tolerances and delivering orders within days to weeks. As a result, we have established ourselves as the premier supplier of alloy wire in the industry.

Our product range includes:

• Copper-nickel alloys (CuNi1-CuNi44)
• Karma (Nikrothal L/Evanohm/Alloy 800)
• Manganin and Constantan
• Nickel-chromium alloys
• Thermocouple alloys (Type K, N, E, T, J)
• Thermocouple extension wire
• PTC thermistor resistance alloy
• Pure nickel wire and Monel alloy

These alloys are available in various forms, including wire, ribbon, stranded, and enamelled. Major applications include seat heating, underfloor heating, military projects, aerospace, household appliances, heating wire, mechanical and electrical plants, and temperature instruments. Our manufacturing processes are ISO 9001:2015 certified, and we specialize in fine and ultra-fine wire drawing, offering wire diameters from 0.025 mm (0.001") to 13 mm (0.51") in small batches, medium volumes, and mass production. We maintain a comprehensive quality inspection system, including in-house chemical analysis, chromatographic analysis, metallurgical analysis, pinhole tests, wire construction tests, and tension tests to ensure the highest quality standards.

Senphus Electrical Material Co., Ltd.: Founded in 2003, Senphus Electrical Material Co., Ltd. integrates research, manufacturing, and sales of electric heating alloys, heating cables, heating wires, and heating products. Leveraging over a decade of technical expertise in heating alloy wire, we have adopted advanced heating cable technology and machinery, successfully developing heating cables, temperature controllers, and temperature control systems suitable for building heating, pipe insulation, outdoor snow melting, wind power blade production, car seat heating, and healthcare applications.

The company is recognized as a high-tech enterprise in Jiangsu Province and a small giant enterprise in Jiangyin City, specializing in innovative technologies. We operate the "Wuxi Heating Cable Engineering Technology Research Center" and collaborate with experts from renowned domestic universities. Our portfolio includes 5 invention patents and over 30 utility model patents, showcasing our strong research and development capabilities.

With an annual output exceeding 1,000 tons of thermal alloy wire and an output value of approximately 105 million yuan, our products are well-received in markets such as the UK, Italy, Canada, Peru, and Spain. Our heating cables generate an annual output value of over 80 million yuan, with exports to Germany, Japan, the United States, Malaysia, Denmark, Brazil, and other countries.

The company has successfully passed multiple quality management system certifications, including IATF 16949, ISO 9001, ISO 14001 (Environmental Management System), and ISO 45001 (Occupational Health and Safety Management System). Our heating cables and related products have also obtained test reports from the Shanghai Cable Research Institute Test Center and received certifications such as UL (United States), VDE (Germany), CE (European Union), and RoHS.

Commitment to Quality: We adhere to the business commitment of "Reputation First, Quality First, Customer First" and uphold the quality policy of "Integrity-Based, Quality-Oriented, Excellent Service." We are dedicated to providing accurate products and professional services, and we look forward to collaborating sincerely with you to achieve mutual success.
