CuNi14 NC020 Versatile Essential Copper Nickel Alloy Wire For Modern Applications

Ask Lasest Price
Brand Name :	Senphus
Model Number :	CuNi14/NC020/CuNi14.2
Price :
Payment Terms :	T/T, D/P
Supply Ability :	30 Tons per day
Delivery Time :	3 days
Certification :	ISO9001

Add to Cart

Product Details
Company Profile

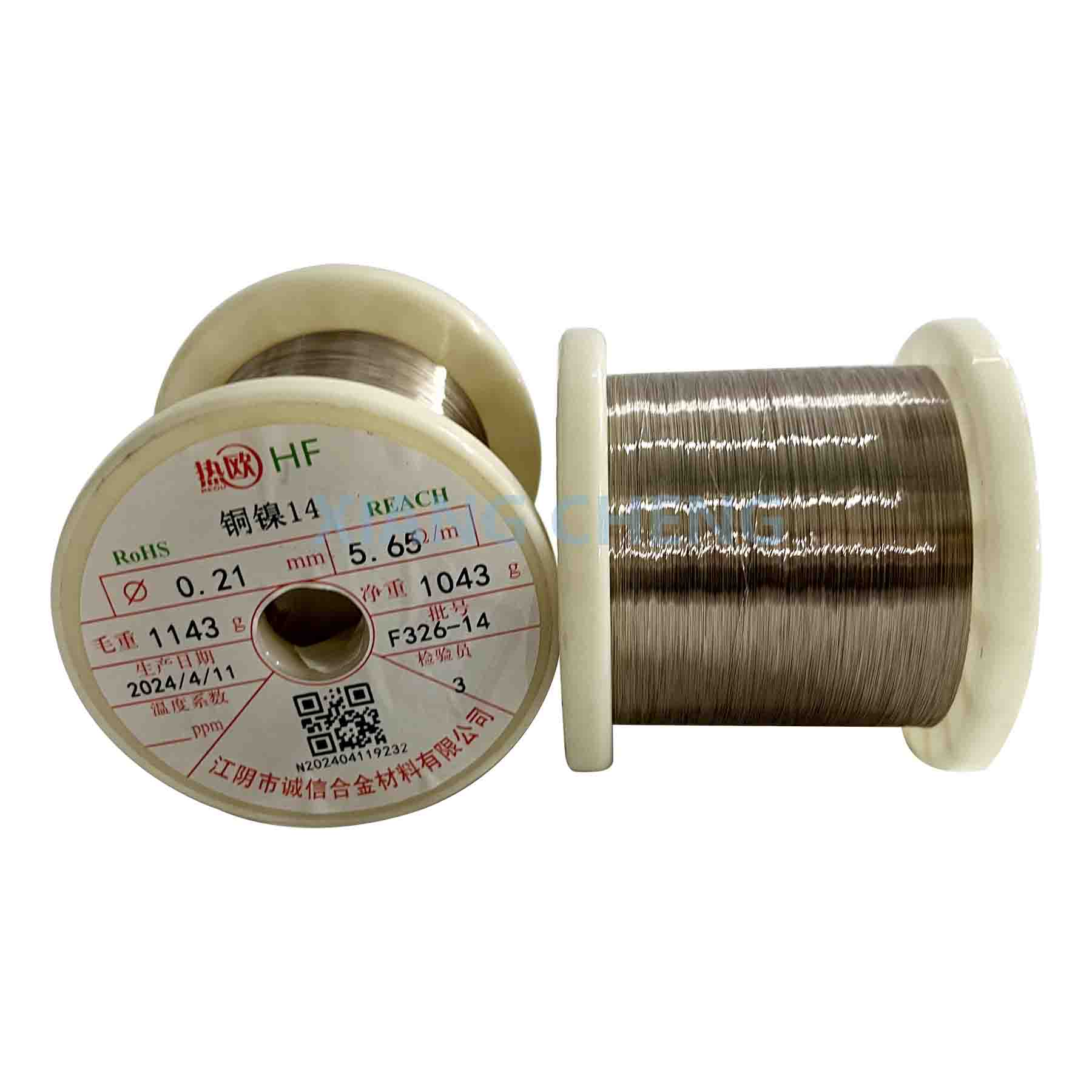

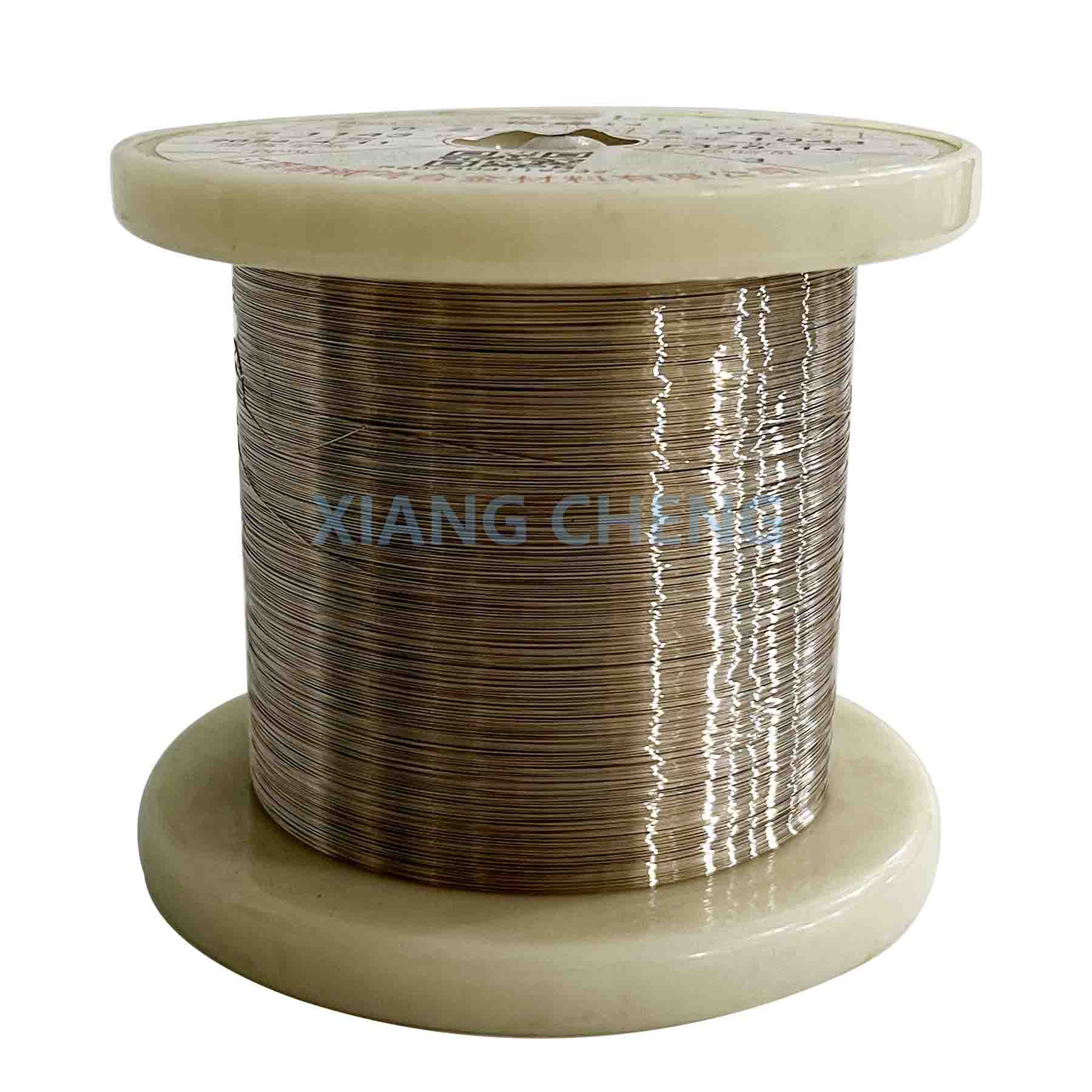

CuNi14 NC020 Versatile Essential Copper Nickel Alloy Wire For Modern Applications

CuNi14 NC020 Versatile Essential Copper Nickel Alloy Wire For Modern Applications

CuNi14 is a copper-nickel alloy composed of approximately 14% nickel and 86% copper. This alloy is recognized for its excellent corrosion resistance, particularly in marine and aggressive industrial environments, and its combination of mechanical strength, thermal conductivity, and non-magnetic properties. Its unique composition makes it suitable for applications demanding durability, reliability, and resistance to harsh conditions.

CuNi14 derives its properties from its nickel content, which enhances its corrosion resistance in seawater and acidic environments, while copper contributes to its thermal and electrical conductivity. The alloy exhibits moderate mechanical strength and excellent formability, making it ideal for various industrial uses.

Chemical Composition Wt.

%	Ni	Mn	Cu
MIN.
MAX.	14.2	0.3	Rest

Main physical properties:

Max continuous operating temperature ℃	300
Resistance temperature coefficient x 10^-5/℃(20℃-600℃)	<38
Thermovoltage to copper at 20℃ in μV/K	-28
Thermal expansion coefficient ×10^-6/K(20℃-400℃)	17.5
Thermal conductance at 20℃ W/mK	48
Specific heat capacity at 20℃ J/gK	0.38

Some key features of CuNi14 include:

‌Composition & Alloying Elements‌
- ‌Copper & Nickel Basis‌: Primarily composed of copper and nickel.
- ‌Minor Additives‌: Contains trace amounts of other metals for enhanced properties.
‌Mechanical Properties‌
- ‌High Strength‌: Exhibits strong tensile and yield strength.
- ‌Good Ductility‌: Easily formed and shaped without breaking.
‌Corrosion Resistance‌
- ‌Excellent in Various Media‌: Highly resistant to corrosion in different environments.
‌Thermal & Electrical Conductivity‌
- ‌Moderate Levels‌: Possesses moderate electrical and thermal conductivity suitable for specific applications.

Applications:

Marine and Offshore Industries:
- Extensively used in seawater piping, condenser tubes, heat exchangers, marine hardware, and shipbuilding due to its ability to resist saltwater corrosion.
Heat Exchangers and Cooling Systems:
- Applied in industrial cooling systems, desalination plants, and chemical processing equipment, where efficient heat transfer and corrosion resistance are critical.
Electrical Components:
- Used in the manufacture of resistors, connectors, and conductive parts where moderate electrical conductivity and environmental resistance are required.
Automotive and Aerospace Industries:
- Employed in components like fuel lines, brake systems, and aircraft parts that need to perform reliably in corrosive and high-temperature conditions.
Desalination and Water Treatment Plants:
- Ideal for use in environments with continuous exposure to brine and seawater, ensuring long service life and minimal maintenance.
Decorative and Architectural Applications:
- Valued for its aesthetic appeal and corrosion resistance, making it suitable for coastal architectural elements like cladding and roofing.

CuNi14 is a versatile alloy with a balanced combination of corrosion resistance, thermal efficiency, and mechanical strength. It is particularly well-suited for use in marine, industrial, and chemical environments, as well as in applications requiring non-magnetic properties. Its reliability and long-term performance under harsh conditions make it an essential material for demanding applications in industries ranging from shipbuilding to electronics.

Type		CuNi14NC020
Composition(%)	Cu	Rest
	Mn	0.3
	Ni	14.2
Max.continuous operating temperature(℃)		300
Resistivity at 20℃(μ m)		0.20 ±5%
Resisitance-temperature coefficient 20-600℃ (×10-5/℃)		＜ 38
Thermovoltage to copper at 20℃ in (μV/K)		-28
Mean coefficient of linear thermal expansion, in (10^-6/K) , at a temperature between 20 ℃ and 400 ℃		17.5
Thermal conductance at 20℃ (W/mK)		48
Specific heat capacity at 20℃ in (20℃ J/gK)		0.38
Density at 20 ℃(g/cm3)		8.9
Melting temperature in (℃)		1115
Min.tensile strength in (N/mm²⁾		310
Elongation(%)		25

Technical data table

Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
0.10	3.82	6.36	8.91	12.73	15.28	19.09	25.46	31.83	38.19	44.56	50.93	62.39
0.11	3.16	5.26	7.37	10.52	12.63	15.78	21.04	26.30	31.56	36.82	42.09	51.56
0.12	2.65	4.42	6.19	8.84	10.61	13.26	17.68	22.10	26.52	30.94	35.37	43.33
0.13	2.26	3.76	5.27	7.53	9.04	11.30	15.07	18.83	22.60	26.36	30.14	36.92
0.14	1.95	3.24	4.55	6.49	7.80	9.74	12.99	16.24	19.48	22.73	25.98	31.83
0.15	1.70	2.82	3.96	5.65	6.79	8.48	11.31	14.14	16.97	19.80	22.64	27.73
0.16	1.49	2.48	3.48	4.97	5.97	7.46	9.95	12.43	14.92	17.40	19.89	24.37
0.17	1.32	2.20	3.08	4.40	5.29	6.60	8.81	11.01	13.21	15.41	17.62	21.59
0.18	1.18	1.96	2.75	3.92	4.72	5.89	7.86	9.82	11.78	13.75	15.72	19.26
0.19	1.06	1.76	2.47	3.52	4.23	5.29	7.05	8.81	10.58	12.34	14.11	17.28
0.20	0.95	1.59	2.23	3.18	3.82	4.77	6.36	7.95	9.54	11.14	12.73	15.60
0.21	0.87	1.44	2.02	2.88	3.46	4.33	5.77	7.21	8.66	10.10	11.55	14.15
0.22	0.79	1.31	1.84	2.63	3.16	3.94	5.26	6.57	7.89	9.20	10.52	12.89
0.23	0.72	1.20	1.68	2.40	2.89	3.61	4.81	6.01	7.22	8.42	9.63	11.79
0.24	0.66	1.10	1.55	2.21	2.65	3.31	4.42	5.52	6.63	7.73	8.84	10.83
0.25	0.61	1.01	1.43	2.03	2.44	3.05	4.07	5.09	6.11	7.13	8.15	9.98
0.26	0.57	0.94	1.32	1.88	2.26	2.82	3.77	4.70	5.65	6.59	7.53	9.23
0.27	0.52	0.87	1.22	1.74	2.10	2.61	3.49	4.36	5.23	6.11	6.99	8.56
0.28	0.49	0.81	1.14	1.62	1.95	2.43	3.25	4.06	4.87	5.68	6.50	7.96
0.29	0.45	0.75	1.06	1.51	1.82	2.27	3.03	3.78	4.54	5.29	6.06	7.42
0.30	0.42	0.70	0.99	1.41	1.70	2.12	2.83	3.53	4.24	4.95	5.66	6.93
0.31	0.40	0.66	0.93	1.32	1.59	1.98	2.65	3.31	3.97	4.63	5.30	6.49
0.32	0.37	0.62	0.87	1.24	1.49	1.86	2.49	3.11	3.73	4.35	4.97	6.09
0.33	0.35	0.58	0.82	1.17	1.40	1.75	2.34	2.92	3.51	4.09	4.68	5.73
0.34	0.33	0.55	0.77	1.10	1.32	1.65	2.20	2.75	3.30	3.85	4.41	5.40
0.35	0.31	0.51	0.73	1.03	1.25	1.55	2.08	2.60	3.11	3.63	4.16	5.09
0.36	0.29	0.49	0.69	0.98	1.18	1.47	1.96	2.46	2.94	3.43	3.93	4.81
0.37	0.28	0.46	0.65	0.93	1.12	1.39	1.86	2.33	2.79	3.25	3.72	4.56
0.38	0.26	0.44	0.62	0.88	1.06	1.32	1.76	2.20	2.64	3.08	3.53	4.32
0.40	0.24	0.39	0.56	0.79	0.95	1.19	1.59	1.99	2.38	2.78	3.18	3.90
0.41	0.23	0.37	0.53	0.76	0.91	1.13	1.51	1.89	2.27	2.65	3.03	3.71
0.42	0.22	0.36	0.51	0.72	0.87	1.08	1.44	1.80	2.16	2.52	2.89	3.54
0.43	0.21	0.34	0.48	0.69	0.83	1.03	1.38	1.72	2.06	2.41	2.75	3.37
0.44	0.20	0.32	0.46	0.66	0.79	0.98	1.31	1.64	1.97	2.30	2.63	3.22
0.45	0.19	0.31	0.44	0.63	0.75	0.94	1.26	1.57	1.88	2.20	2.52	3.08
0.46	0.18	0.30	0.42	0.60	0.72	0.90	1.20	1.50	1.80	2.10	2.41	2.95
0.47	0.17	0.28	0.40	0.58	0.69	0.86	1.15	1.44	1.72	2.01	2.31	2.82
0.48	0.17	0.27	0.39	0.55	0.66	0.82	1.10	1.38	1.65	1.93	2.21	2.71
0.49	0.16	0.26	0.37	0.53	0.64	0.79	1.06	1.33	1.59	1.85	2.12	2.60
0.50	0.15	0.25	0.36	0.51	0.61	0.76	1.01	1.27	1.52	1.78	2.04	2.50
0.51	0.15	0.24	0.34	0.49	0.59	0.73	0.98	1.22	1.46	1.71	1.96	2.40
0.52	0.14	0.23	0.33	0.47	0.57	0.70	0.94	1.18	1.41	1.65	1.88	2.31
0.53	0.14	0.22	0.32	0.45	0.54	0.67	0.91	1.13	1.35	1.59	1.81	2.22
0.54	0.13	0.22	0.31	0.44	0.52	0.65	0.87	1.09	1.30	1.53	1.75	2.14
0.55	0.13	0.21	0.29	0.42	0.51	0.63	0.84	1.05	1.26	1.47	1.68	2.06
0.56	0.12	0.20	0.28	0.41	0.49	0.60	0.81	1.02	1.21	1.42	1.62	1.99
0.57	0.12	0.19	0.27	0.39	0.47	0.58	0.78	0.98	1.17	1.37	1.57	1.92
0.58	0.11	0.19	0.27	0.38	0.45	0.56	0.76	0.95	1.13	1.32	1.51	1.85
0.59	0.11	0.18	0.26	0.37	0.44	0.54	0.73	0.91	1.09	1.28	1.46	1.79
0.60	0.11	0.18	0.25	0.35	0.42	0.53	0.71	0.88	1.06	1.24	1.41	1.73

Tolerance of ohm/m: ±5%
Round wire: range from 0.04mm (0.0016″) to 12mm (0.4724″)
Ribbon: range from 0.05mm (0.002″) to 6mm (0.2362″), Max ratio width : thickness = 10:1
