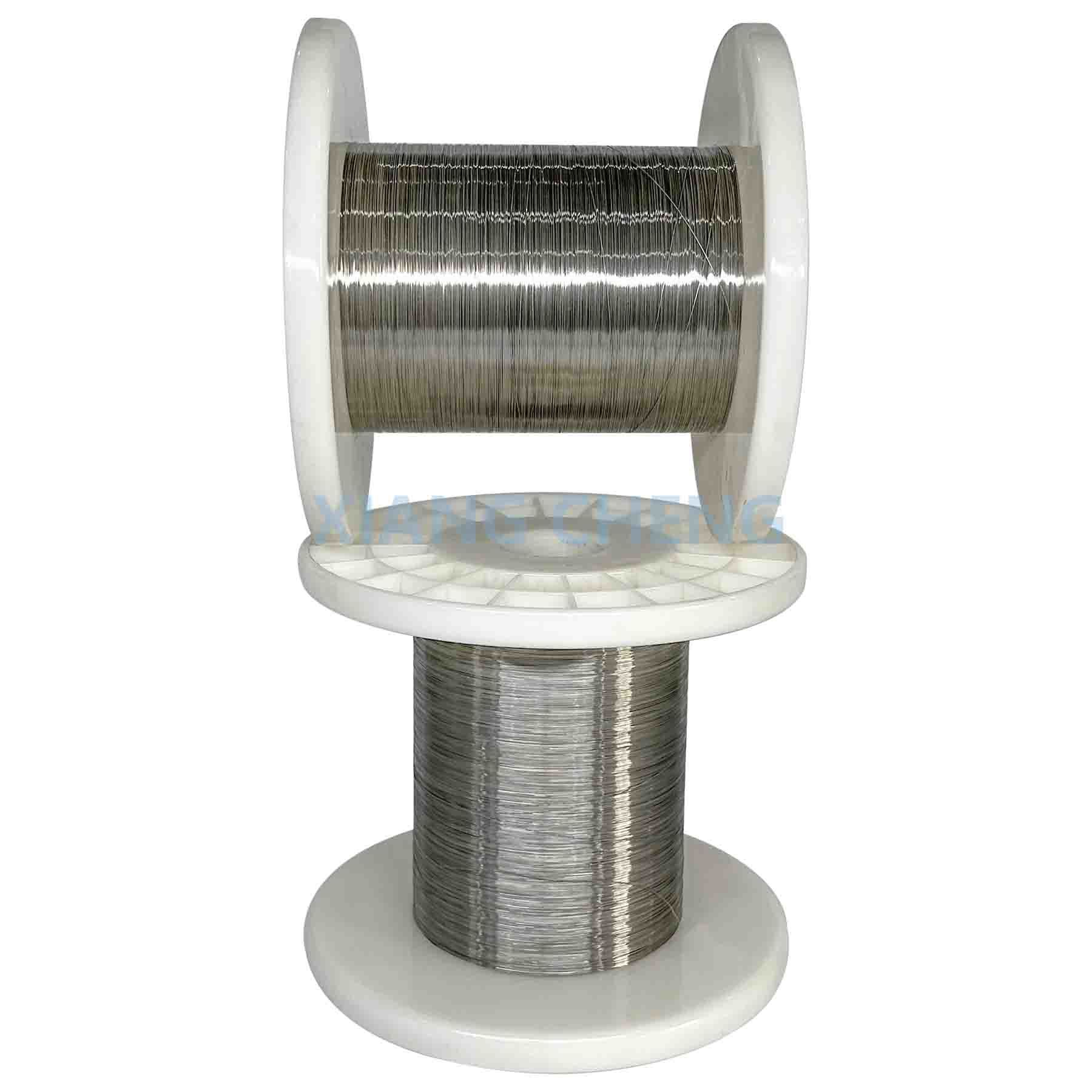

NiCrSi-NiSiMg Type N Thermocouple Wire Wide Temperature Range and Excellent Long-Term Performance

NiCrSi-NiSiMg Type N Thermocouple Wire is a high-precision, high-stability thermocouple, particularly well-suited for high-temperature, oxidizing, and corrosive environments. With a wide temperature range, excellent resistance to oxidation and sulfur, and minimal drift over time, it is ideal for demanding industrial applications such as gas turbines, aerospace, metal processing, and high-temperature scientific research. Despite being more expensive than other thermocouple types, its superior performance and longevity make it a worthwhile investment in extreme temperature conditions.

Thermocouple temperature range and tolerance

Some key features of NiCrSi-NiSiMg Type N Thermocouple Wire include:

• Wide Temperature Range

-200°C to 1300°C (-328°F to 2372°F).

Type N thermocouples are ideal for high-temperature measurements and can operate reliably at temperatures higher than other common thermocouple types like Type K or Type J.

• Excellent Accuracy

Type N provides high accuracy and stability with a thermoelectric voltage that delivers a precise measurement. The tolerance is typically ±0.25°C in the lower temperature range and ±0.75% in the high-temperature range.

• Material Composition

Positive Leg (NiCrSi): A nickel-chromium-silicon alloy that provides improved resistance to oxidation at high temperatures, especially in oxidative or corrosive environments.

Negative Leg (NiSiMg): A nickel-silicon-magnesium alloy that enhances resistance to oxidation and improves thermoelectric stability at high temperatures.

• Thermoelectric Properties

Type N has a low temperature coefficient and delivers stable voltage output over a broad temperature range, making it suitable for precision temperature measurements.

• Superior Oxidation Resistance

Both the NiCrSi and NiSiMg alloys are highly resistant to oxidation, even at elevated temperatures, making Type N thermocouples ideal for use in harsh or highly oxidative environments such as furnaces, gas turbines, and high-temperature industrial processes.

• Stable Long-Term Performance

Exceptional long-term stability: Type N thermocouples offer superior stability over extended periods compared to other thermocouple types, especially in high-temperature applications.

Minimal drift: Type N is less prone to drift and degradation over time, which enhances reliability and reduces maintenance costs.

• Non-Magnetic

Type N thermocouples are non-magnetic, making them suitable for applications where magnetism can interfere with processes or measurements.

• Resistance to Sulfur

Excellent performance in sulfur-rich environments, which often cause rapid degradation in other thermocouple types like Type K or Type J.

Applications

• High-Temperature Processing: Ideal for use in furnaces, kilns, and other high-temperature industrial applications.
• Aerospace & Gas Turbines: Perfect for measuring temperatures in turbines, jet engines, and other aerospace components exposed to extreme heat.
• Research & Scientific Applications: Provides accurate temperature measurement for high-temperature scientific experiments.
• Metallurgical & Chemical Industries: Suitable for environments with oxidizing atmospheres, such as metal processing and chemical manufacturing.

Cable Options

• Available in bare wire, insulated wire, or cable forms, with insulation materials such as fiberglass, ceramic, and Teflon.
• Shielded cables are available for environments with electrical noise or electromagnetic interference.

Advantages of Type N Thermocouple Wire:

• High Accuracy and Stability: Type N offers exceptional accuracy and long-term stability, making it suitable for precision measurements in high-temperature applications.
• Resistance to Oxidation: The unique alloy composition ensures resistance to oxidation and corrosion, especially in high-temperature and oxidative environments.
• Wide Temperature Range: Operates reliably in temperatures up to 1300°C, suitable for high-temperature industrial applications.
• Minimal Drift: It experiences minimal drift over time, improving the consistency and reliability of temperature measurements.
• Non-Magnetic Properties: Non-magnetic characteristics make it suitable for use in sensitive applications, such as aerospace and electronics.
• Sulfur Resistance: Resistant to sulfur, which can degrade other thermocouple types.

Limitations:

• Cost: Type N thermocouples are typically more expensive than other common thermocouples (like Type K), due to their special alloy composition and higher performance characteristics.
• Specialized Application: While ideal for high-temperature and oxidative environments, they may be over-engineered for applications that do not require such extremes, leading to higher costs.
